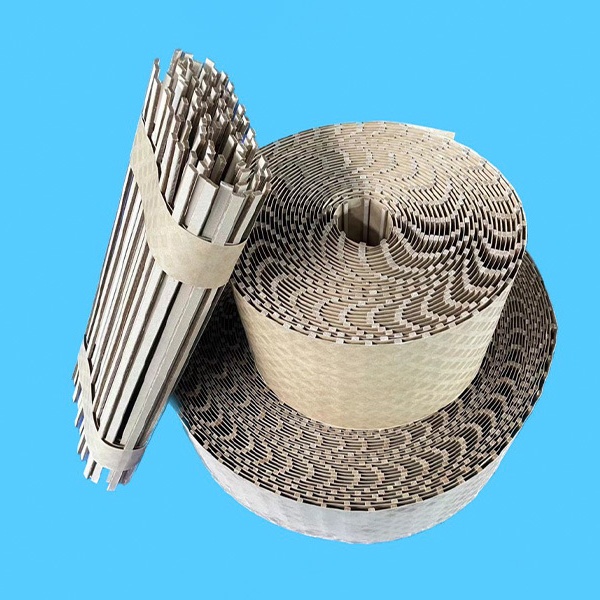

| Name: | Spacer Strips |
|---|---|
| Material: | sulfate pulp |
| Voltage: | 35kV |
| Thickness Range: | 0.8~6.0mm |
| Thickness Tolerance: | ±5%~±7% |
| Density: | 1.0~1.30 g/cm³ |
| Tensile Strength (MD): | ≥ 70 N/mm² |
| Tensile Strength (CD): | ≥ 50 N/mm² |
| Dielectric Strength in Oil: | ≥ 25 kV/mm |
| INQUIRY |
Product Description
Thickness Range: 0.8 mm – 6.0 mm
Product Grades: T1 Standard (for distribution transformers), T2 Medium-High Performance (mainstream for 35 kV)
Quality Standards: GB/T 19264, IEC 60641; Thermal Class A, 105 ℃
